Card Sort based Setups (#11, #12, #13, #19 & #20)
For all these questions copy paste the below code and update question text, row text and label, column text and label accordingly:

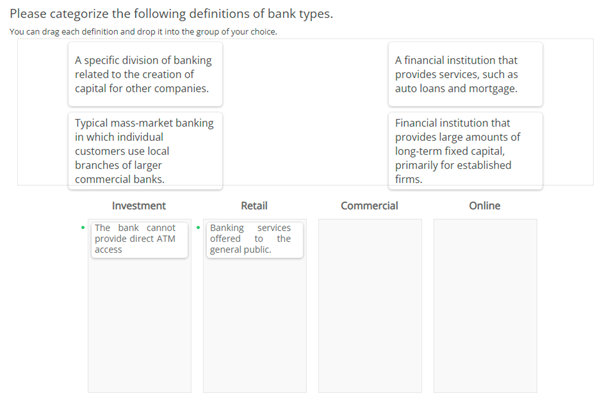

<radio
label="ketoolCardsortText"
builderHint="{"rocochoName":"radiogrid"}"
fir="off"
surveyDisplay="desktop">
<title>Please categorize the following definitions of bank types.</title>
<comment>You can drag each definition and drop it into the group of your choice.
</comment>
<col label="c1">Investment</col>
<col label="c2">Retail</col>
<col label="c3">Commercial</col>
<col label="c4">Online</col>
<row label="r1">A specific division of banking related to the creation of capital for other companies.</row>
<row label="r2">The bank cannot provide direct ATM access</row>
<row label="r3">A financial institution that provides services, such as auto loans and mortgage.</row>
<row label="r4">Typical mass-market banking in which individual customers use local branches of larger commercial banks.</row>
<row label="r5">Banking services offered to the general public.</row>
<row label="r6">Financial institution that provides large amounts of long-term fixed capital, primarily for established firms.</row>
<style name="page.head"><![CDATA[
<style>
.answers{display:none;}
#btn_continue {
visibility: hidden;
}
</style>
]]></style>
<style name="question.after"><![CDATA[
<div class="ketool-stage" id="ketool-stage-${this.label}" style="margin-bottom: 50px; margin-top: -30px;"></div>
<script type="text/javascript" src="${KEDomain}/core/framework.min.js"></script>
<script>
if (!ketool.qDefs) {
ketool.qDefs = {};
if(!ketool.toolLoader) {
ketool.toolLoader = new ketool.Loader({
"baseFileURL": "${KEDomain}/core/",
"scriptDeps": [
"fancybox/fancybox.library.js",
"plugins/jquery-ui.min.js",
"plugins/jquery.ui.touch-punch.min.js",
"plugins/jquery_clickfix.ui.touch-punch.min.js",
"advanced_ui/Carousel_libs.js",
"advanced_ui/Carousel.js"
],
"cssDeps": [
"framework.css",
"fancybox/fancybox.library.css",
"ionicons/ionicons.min.css",
"plugins/jquery-ui.css",
"advanced_ui/Carousel_libs.css",
"advanced_ui/Carousel.css"
],
"coreFile": "application.min.js",
"messages": null,
"platformInterface": { js: "platform_interface/platform_interface.js", "css": "platform_interface/platform_interface.css" }
});
console.log("ketool.toolLoader: ", ketool.toolLoader);
}
}
ketool.qDefs["${this.label}"] = ${jsexport()};
var isTest = "${gv.isUser() and not gv.debug.respview}" === "True";
var toolSettings = {
"toolJs": "application.min.js",
"toolName": "Cardsort",
"jsToLoad": [],
"cssToLoad": ["style.css"],
"baseToolPath": "${KEDomain}/tools/card_sort/",
"container": "#ketool-stage-${this.label}",
"toolCssNames": [],
"imageBaseURL": "https://au.focusvision.com/survey/selfserve/560/221003/",
"minRequired": ${len(this.rows)},
"maxAllowed": ${len(this.rows)},
"timeDataNumDecimals": 2,
"autoNext": false,
"autoNextItem": true,
"numRequiredGroups": 1,
"maxAllowedInGroups": 0,
"maxCardDrop": 1,
"showZoom": false,
"zoomPosition": "bottom-right",
"oneByOne": false,
"isRanking": false,
"isLadder": false,
"showCounter": true,
"countPrefix": "",
"countDelimiter": "/",
"countSuffix": "",
"compOrder": ["itemContainer","bucketContainer"],
"numCardsCarousel": 1,
"animationSpeed": 300,
"cardLayout": "grid", // grid, carousel
"carouselType": "horizontal", // horizontal, vertical
"tolerance": "pointer",
"bucketWidth": 160,
"bucketHeight": 260,
"droppedCardWidth": 150,
"droppedCardHeight": 55,
"qid": getFormName(1),
"formNames":{
"time_qid": "",
"order_qid": "",
"exclusive_qid": ""
},
"answerItemConfig": {
// "width": "100%",
// "numItemsPerRow": { "small": 2, "medium": 3, "large": 3 }
"width": "240px",
"height": "100px",
"numItemsPerRow": 4
},
"customValidation": function(q){
console.log("customValidation()");
return true;
},
mobileConfig: {}
};
ketool.toolLoader.registerSettings(toolSettings, function(info){
// console.log("Questions loaded");
// console.log(JSON.stringify(info.bridge._platformInterface._questions));
// console.log("info: ", info);
info.bridge.setPageValidation(function(){
// console.log("setPageValidation");
return true;
});
info.instance.on("tool_loaded", function(e){
//console.log("tool_loaded", e);
if(isTest){
${initKEToggleData()}
}
});
});
$ (function(){
ketool.toolLoader.initLoad();
});
</script>
]]></style>
</radio>
<suspend/>

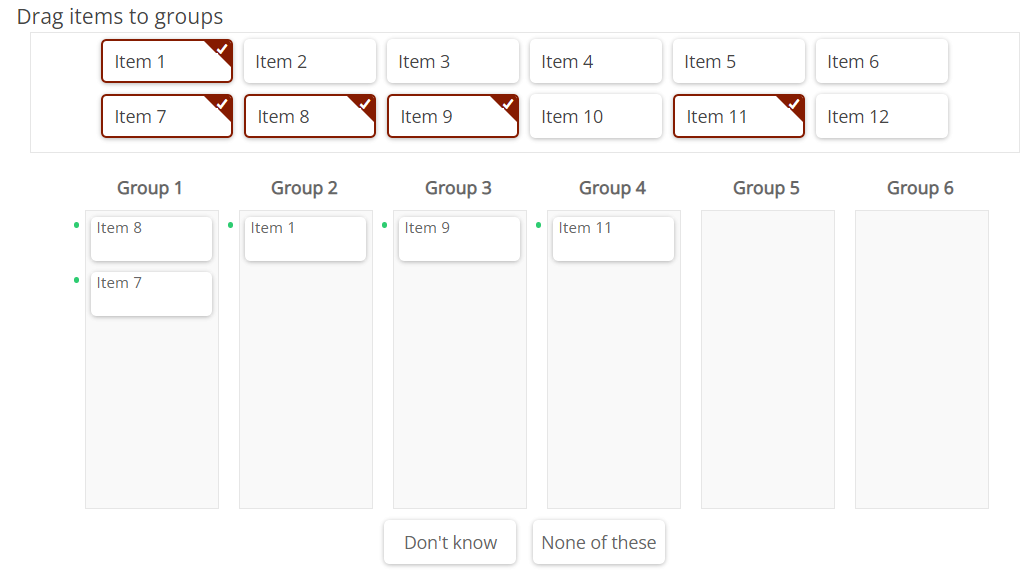

<checkbox
label="ketoolMultiCardsortText"
builderHint="{"rocochoName":"checkboxgrid"}"
fir="off"
optional="1"
surveyDisplay="desktop">
<title>Drag items to groups</title>
<validate>
answered = False
for x in ketoolMultiCardsortText.rows:
if x.any:
answered = True
break
exAnswered = [x.val for x in ketoolMultiCardsortText_dk.rows if x.val ]
if (not answered and len(exAnswered)==0) or (answered and len(exAnswered) > 0):
error("Either drop at least 1 item or select any of the exclusive options to continue.")
</validate>
<col label="c1">Group 1</col>
<col label="c2">Group 2</col>
<col label="c3">Group 3</col>
<col label="c4">Group 4</col>
<col label="c5">Group 5</col>
<col label="c6">Group 6</col>
<row label="r1">Item 1</row>
<row label="r2">Item 2</row>
<row label="r3">Item 3</row>
<row label="r4">Item 4</row>
<row label="r5">Item 5</row>
<row label="r6">Item 6</row>
<row label="r7">Item 7</row>
<row label="r8">Item 8</row>
<row label="r9">Item 9</row>
<row label="r10">Item 10</row>
<row label="r11">Item 11</row>
<row label="r12">Item 12</row>
<style name="page.head"><![CDATA[
<style>
.answers{display:none;}
#btn_continue {
visibility: hidden;
}
</style>
]]></style>
<style name="question.after"><![CDATA[
<div class="ketool-stage" id="ketool-stage-${this.label}" style="margin-top: -30px;"></div>
<script type="text/javascript" src="${KEDomain}/core/framework.min.js"></script>
<script>
if (!ketool.qDefs) {
ketool.qDefs = {};
if(!ketool.toolLoader) {
ketool.toolLoader = new ketool.Loader({
"baseFileURL": "${KEDomain}/core/",
"scriptDeps": [
"fancybox/fancybox.library.js",
"plugins/jquery-ui.min.js",
"plugins/jquery.ui.touch-punch.min.js",
"plugins/jquery_clickfix.ui.touch-punch.min.js",
"advanced_ui/Carousel_libs.js",
"advanced_ui/Carousel.js"
],
"cssDeps": [
"framework.css",
"fancybox/fancybox.library.css",
"ionicons/ionicons.min.css",
"plugins/jquery-ui.css",
"advanced_ui/Carousel_libs.css",
"advanced_ui/Carousel.css"
],
"coreFile": "application.min.js",
"messages": null,
"platformInterface": { js: "platform_interface/platform_interface.js", "css": "platform_interface/platform_interface.css" }
});
console.log("ketool.toolLoader: ", ketool.toolLoader);
}
}
ketool.qDefs["${this.label}"] = ${jsexport()};
var isTest = "${gv.isUser() and not gv.debug.respview}" === "True";
var toolSettings = {
"toolJs": "application.min.js",
"toolName": "Cardsort",
"jsToLoad": [],
"cssToLoad": ["style.css"],
"baseToolPath": "${KEDomain}/tools/card_sort/",
"container": "#ketool-stage-${this.label}",
"toolCssNames": [],
"imageBaseURL": "https://au.focusvision.com/survey/selfserve/560/221003/",
"minRequired": 1,
"maxAllowed": 0,
"timeDataNumDecimals": 2,
"autoNext": false,
"numRequiredGroups": 1,
"maxAllowedInGroups": 0,
"maxCardDrop": 3,
"showZoom": false,
"zoomPosition": "bottom-right",
"oneByOne": false,
"isRanking": false,
"isLadder": false,
"showCounter": true,
"countPrefix": "",
"countDelimiter": "/",
"countSuffix": "",
"compOrder": ["itemContainer","bucketContainer"],
"numCardsCarousel": 1,
"animationSpeed": 300,
"cardLayout": "grid", // grid, carousel
"carouselType": "horizontal", // horizontal, vertical
"tolerance": "pointer",
"bucketWidth": 120,
"bucketHeight": 260,
"droppedCardWidth": 110,
"droppedCardHeight": 40,
"qid": getFormName(1),
"formNames":{
"time_qid": "",
"order_qid": "",
"exclusive_qid": "${this.label}_dk"
},
"answerItemConfig": {
// "width": "100%",
// "numItemsPerRow": { "small": 2, "medium": 3, "large": 3 }
"width": "120px",
"height": "40px",
"numItemsPerRow": 4
},
mobileConfig: {},
"customValidation": function(q){
console.log("customValidation()");
return true;
}
};
ketool.toolLoader.registerSettings(toolSettings, function(info){
// console.log("Questions loaded");
// console.log(JSON.stringify(info.bridge._platformInterface._questions));
console.log("info: ", info);
info.bridge.setPageValidation(function(){
console.log("setPageValidation");
return true;
});
info.instance.on("tool_loaded", function(e){
//console.log("tool_loaded", e);
if(isTest){
${initKEToggleData()}
}
});
info.instance.on("item_dropped", function(e, payload) {
// console.log("item_dropped e.detail.precode: ", e.detail);
// info.bridge.platformInterface.setQuestionAnswer();
});
});
$ (function(){
ketool.toolLoader.initLoad();
});
</script>
]]></style>
</checkbox>
<radio
label="ketoolMultiCardsortText_dk"
fir="off"
optional="1"
surveyDisplay="desktop">
<title>KEtool multiCardsort DK</title>
<comment>test</comment>
<row label="r1">Don't know</row>
<row label="r2">None of these</row>
<style name="question.after"><![CDATA[
<script type='text/javascript'>
if (ketool.qDefs)
ketool.qDefs["${this.label}"] = ${jsexport()};
</script>
]]></style>
</radio>
<suspend/>

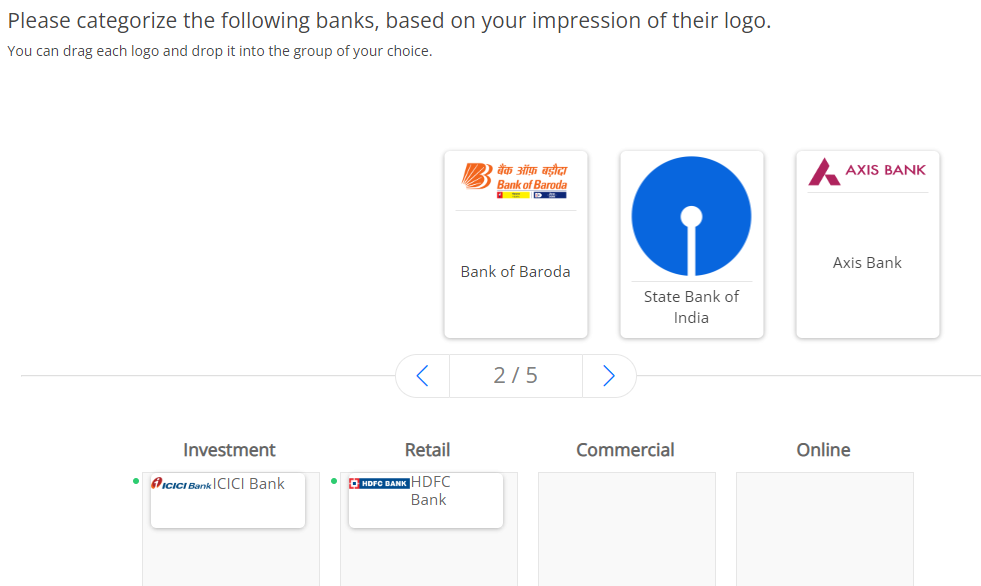

<radio
label="ketoolCardsortCarouselImage"
fir="off"
surveyDisplay="desktop">
<title>Please categorize the following banks, based on your impression of their logo.</title>
<comment>You can drag each logo and drop it into the group of your choice.<br /><br /></comment>
<col label="c1">Investment</col>
<col label="c2">Retail</col>
<col label="c3">Commercial</col>
<col label="c4">Online</col>
<row label="r1">ICICI Bank{@imageURL::bank_1.png||largeImageURL::bank_1_L.png||width::130px||height::170px@}</row>
<row label="r2">HDFC Bank{@imageURL::bank_2.png||largeImageURL::bank_2_L.png||width::130px||height::170px@}</row>
<row label="r3">Bank of Baroda{@imageURL::bank_3.png||largeImageURL::bank_3_L.png||width::130px||height::170px@}</row>
<row label="r4">State Bank of India{@imageURL::bank_4.png||largeImageURL::bank_4_L.png||width::130px||height::170px@}</row>
<row label="r5">Axis Bank{@imageURL::bank_5.png||largeImageURL::bank_5_L.png||width::130px||height::170px@}</row>
<style name="page.head"><![CDATA[
<style>
.answers{display:none;}
#btn_continue {
visibility: hidden;
}
.ketool-cardsort-container .ketool-collapsible-groupholder.ketool-cardsort-itemholder-inner {
border: none;
}
</style>
]]></style>
<style name="question.after"><![CDATA[
<div class="ketool-stage" id="ketool-stage-${this.label}"></div>
<script type="text/javascript" src="${KEDomain}/framework.min.js"></script><script type="text/javascript" src="${KEDomain}/core/framework.min.js"></script>
<script>
if (!ketool.qDefs) {
ketool.qDefs = {};
if(!ketool.toolLoader) {
ketool.toolLoader = new ketool.Loader({
"baseFileURL": "${KEDomain}/core/",
"scriptDeps": [
"fancybox/fancybox.library.js",
"plugins/jquery-ui.min.js",
"plugins/jquery.ui.touch-punch.min.js",
"plugins/jquery_clickfix.ui.touch-punch.min.js",
"advanced_ui/Carousel_libs.js",
"advanced_ui/Carousel.js"
],
"cssDeps": [
"framework.css",
"fancybox/fancybox.library.css",
"ionicons/ionicons.min.css",
"plugins/jquery-ui.css",
"advanced_ui/Carousel_libs.css",
"advanced_ui/Carousel.css"
],
"coreFile": "application.min.js",
"messages": null,
"platformInterface": { js: "platform_interface/platform_interface.js", "css": "platform_interface/platform_interface.css" }
});
console.log("ketool.toolLoader: ", ketool.toolLoader);
}
}
ketool.qDefs["${this.label}"] = ${jsexport()};
var isTest = "${gv.isUser() and not gv.debug.respview}" === "True";
var toolSettings = {
"toolJs": "application.min.js",
"toolName": "Cardsort",
"jsToLoad": [],
"cssToLoad": ["style.css"],
"baseToolPath": "${KEDomain}/tools/card_sort/",
"container": "#ketool-stage-${this.label}",
"toolCssNames": [],
"imageBaseURL": "https://au.focusvision.com/survey/selfserve/560/221003/",
"minRequired": ${len(this.rows)},
"maxAllowed": ${len(this.rows)},
"timeDataNumDecimals": 2,
"autoNext": false,
"autoNextItem": true,
"numRequiredGroups": 2,
"maxAllowedInGroups": 3,
"maxCardDrop": 1,
"showZoom": false,
"zoomPosition": "bottom-right",
"zoomButtonImage" : "${KEDomain}/tools/images/mag.png",
"oneByOne": false,
"isRanking": false,
"isLadder": false,
"showCounter": true,
"countPrefix": "",
"countDelimiter": "/",
"countSuffix": "",
"compOrder": ["itemContainer","bucketContainer"],
"numCardsCarousel": 1,
"animationSpeed": 300,
"cardLayout": "carousel", // grid, carousel
"carouselType": "horizontal", // horizontal, vertical
"tolerance": "pointer",
"bucketWidth": 160,
"bucketHeight": 260,
"droppedCardWidth": 140,
"droppedCardHeight": 50,
"qid": getFormName(1),
"formNames":{
"time_qid": "",
"order_qid": "",
"exclusive_qid": ""
},
"answerItemConfig": {
// "width": "100%",
// "numItemsPerRow": { "small": 2, "medium": 3, "large": 3 }
"width": "300px",
"height": "100px",
"numItemsPerRow": 4
},
mobileConfig: {},
"customValidation": function(q){
console.log("customValidation()");
return true;
}
};
ketool.toolLoader.registerSettings(toolSettings, function(info){
// console.log("Questions loaded");
// console.log(JSON.stringify(info.bridge._platformInterface._questions));
console.log("info: ", info);
info.bridge.setPageValidation(function(){
console.log("setPageValidation");
return true;
});
info.instance.on("tool_loaded", function(e){
//console.log("tool_loaded", e);
if(isTest){
${initKEToggleData()}
}
});
info.instance.on("item_dropped", function(e, payload) {
// console.log("item_dropped e.detail.precode: ", e.detail);
// info.bridge.platformInterface.setQuestionAnswer();
});
});
$ (function(){
ketool.toolLoader.initLoad();
});
</script>
]]></style>
</radio>
<suspend/>
<define label="ketoolCardsort1Row">
<row label="r1">Guacamole</row>
<row label="r2">Hummus</row>
<row label="r3">Salsa</row>
<row label="r4">Applesauce</row>
<row label="r5">Breakfast meat (e.g., bacon, sausage)</row>
<row label="r6">Bruschetta</row>
<row label="r7">Butter/margarine</row>
<row label="r8">Candy bar/ Chocolate candy</row>
<row label="r9">Canned soups</row>
<row label="r10">Cheese dips</row></define>
<define label="ketoolCardsort1Col">
<row label="c1">Dip</row>
<row label="c2">2</row>
<row label="c3">3</row>
<row label="c4">4</row>
<row label="c5">5</row></define>
<radio
label="ketoolCardsort1"
builderHint="{"rocochoName":"radiogrid"}"
fir="off"
ss:questionClassNames="ketool-main-question-container"
surveyDisplay="desktop">

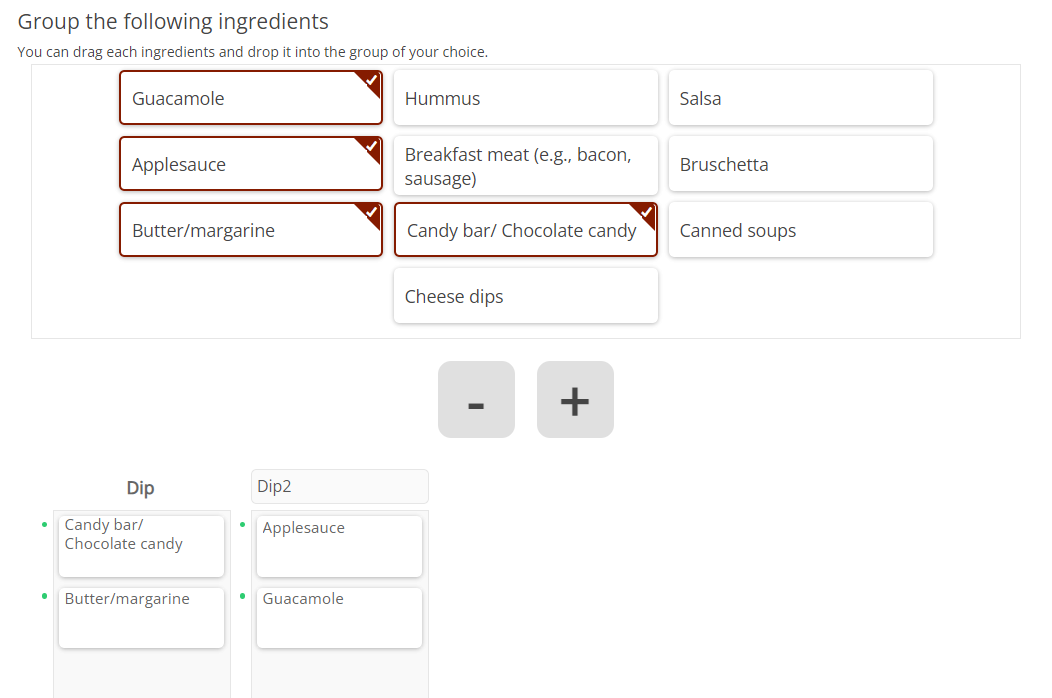

<title>Group the following ingredients</title>
<comment>You can drag each ingredients and drop it into the group of your choice.</comment>
<insert source="ketoolCardsort1Row"/>
<insert as="cols" source="ketoolCardsort1Col"/>
<style name="page.head"><![CDATA[
<style>
.answers{display:none;}
#btn_continue {visibility: hidden;}
.question:not(.ketool-main-question-container) {padding-top: 0;margin-top: 0;padding-bottom: 0;margin-bottom: 0;width: 100%;max-width:calc(924px - 15px);}
</style>
]]></style>
<style name="question.after"><![CDATA[
<div class="ketool-stage" id="ketool-stage-${this.label}" style="margin-bottom: 50px; margin-top: -30px;"></div>
<script type="text/javascript" src="${KEDomain}/core/framework.min.js"></script>
<script>
if (!ketool.qDefs) {
ketool.qDefs = {};
if (!ketool.toolLoader) {
ketool.toolLoader = new ketool.Loader({
"baseFileURL": "${KEDomain}/core/",
"scriptDeps": [
"fancybox/fancybox.library.js",
"plugins/jquery-ui.min.js",
"plugins/jquery.ui.touch-punch.min.js",
"plugins/jquery_clickfix.ui.touch-punch.min.js",
"advanced_ui/Carousel_libs.js",
"advanced_ui/Carousel.js"
],
"cssDeps": [
"framework.css",
"fancybox/fancybox.library.css",
"ionicons/ionicons.min.css",
"plugins/jquery-ui.css",
"advanced_ui/Carousel_libs.css",
"advanced_ui/Carousel.css"
],
"coreFile": "application.min.js",
"messages": null,
"platformInterface": { js: "platform_interface/platform_interface.js", "css": "platform_interface/platform_interface.css" }
});
console.log("ketool.toolLoader: ", ketool.toolLoader);
}
}
ketool.qDefs["${this.label}"] = ${jsexport()};
var isTest = "${gv.isUser() and not gv.debug.respview}" === "True";
var toolSettings = {
"toolJs": "application.min.js",
"toolName": "Cardsort",
"jsToLoad": ["custom_bucket/customBucket.js"],
"cssToLoad": ["style.css", "custom_bucket/customBucket.css"],
"baseToolPath": "${KEDomain}/tools/card_sort/",
"container": "#ketool-stage-${this.label}",
"toolCssNames": [],
"imageBaseURL": "",
"minRequired": ${len(this.rows)},
"maxAllowed": ${len(this.rows)},
"timeDataNumDecimals": 2,
"autoNext": false,
"autoNextItem": true,
"numRequiredGroups": 1,
"maxAllowedInGroups": 0,
"maxCardDrop": 3,
"showZoom": false,
"zoomPosition": "bottom-right",
"oneByOne": false,
"isRanking": false,
"isLadder": false,
"showCounter": true,
"countPrefix": "",
"countDelimiter": "/",
"countSuffix": "",
//"compOrder": ["bucketContainer", "itemContainer"],
"compOrder": ["itemContainer", "bucketContainer"],
"numCardsCarousel": 1,
"animationSpeed": 300,
"cardLayout": "grid", // grid, carousel
"carouselType": "horizontal", // horizontal, vertical
"tolerance": "pointer",
"bucketWidth": 160,
"bucketHeight": 260,
"droppedCardWidth": 150,
"droppedCardHeight": 55,
"qid": getFormName(1),
"formNames": {
"time_qid": "",
"order_qid": "",
"exclusive_qid": ""
},
"answerItemConfig": {
"width": "240px",
"height": "50px",
"numItemsPerRow": 4
},
"customBucketSettings" : {
bucket_qid : getFormName(1)+"Header",
showBucketBy: "button", // "free" - show buckets when card is dragged || "button" - add +/- button to show or hide buckets
initBucketShown: 1,
//for manual adding of new group
btnPosition : "top", //top or bottom of the buckets
addOnEmpty : false,
},
"customValidation": function(q) {
console.log("customValidation()");
return true;
},
mobileConfig: {}
};
ketool.toolLoader.registerSettings(toolSettings, function(info) {
// console.log("Questions loaded");
// console.log(JSON.stringify(info.bridge._platformInterface._questions));
// console.log("info: ", info);
info.bridge.setPageValidation(function() {
// console.log("setPageValidation");
return true;
});
info.instance.on("item_dropped", function(e) {
ketool.customPlugin.func.onItemDropped(info, toolSettings, e)
});
info.instance.on("tool_loaded", function(e) {
//console.log("tool_loaded", e);
ketool.customPlugin.func.initGroupings(info, toolSettings)
if (isTest) {
${initKEToggleData()}
}
});
});
$ (function() {
ketool.toolLoader.initLoad();
});
</script>
]]></style>
</radio>
<text
label="ketoolCardsort1Header"
translateable="0">
<title>Bucket Name</title>
<row label="c2">2</row>
<row label="c3">3</row>
<row label="c4">4</row>
<row label="c5">5</row>
<style name="question.after"><![CDATA[
<script type='text/javascript'>if (ketool.qDefs) ketool.qDefs["${this.label}"] = ${jsexport()};</script>
]]></style>
</text>
<suspend/>
<define label="ketoolCardsort2Row">
<row label="r1">Guacamole</row>
<row label="r2">Hummus</row>
<row label="r3">Salsa</row>
<row label="r4">Applesauce</row>
<row label="r5">Breakfast meat (e.g., bacon, sausage)</row>
<row label="r6">Bruschetta</row>
<row label="r7">Butter/margarine</row>
<row label="r8">Candy bar/ Chocolate candy</row>
<row label="r9">Canned soups</row>
<row label="r10">Cheese dips</row></define>
<define label="ketoolCardsort2Col">
<row label="c1">1</row>
<row label="c2">2</row>
<row label="c3">3</row>
<row label="c4">4</row>
<row label="c5">5</row></define>
<radio
label="ketoolCardsort2"
builderHint="{"rocochoName":"radiogrid"}"
fir="off"
ss:questionClassNames="ketool-main-question-container"
surveyDisplay="desktop">

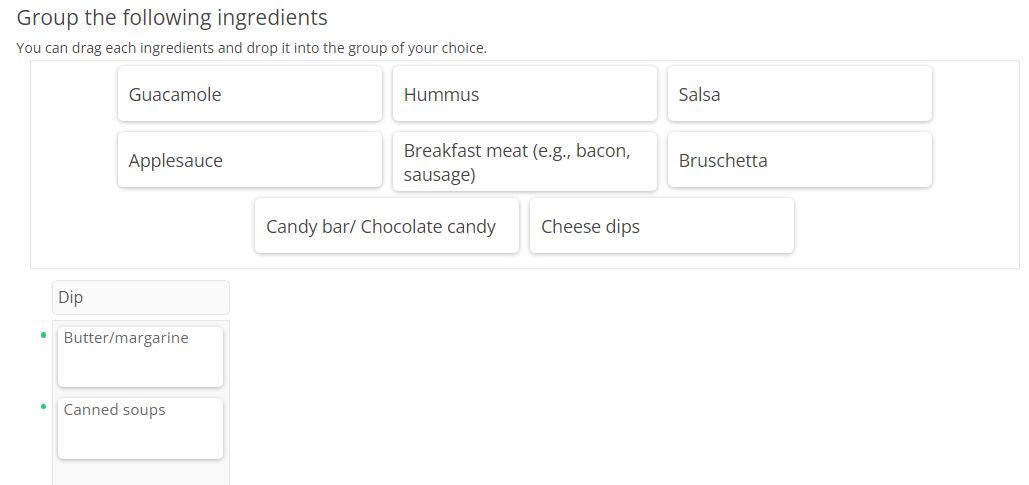

<title>Group the following ingredients</title>
<comment>You can drag each ingredients and drop it into the group of your choice.</comment>
<insert source="ketoolCardsort2Row"/>
<insert as="cols" source="ketoolCardsort2Col"/>
<style name="page.head"><![CDATA[
<style>
.answers{display:none;}
#btn_continue {visibility: hidden;}
.question:not(.ketool-main-question-container) {padding-top: 0;margin-top: 0;padding-bottom: 0;margin-bottom: 0;width: 100%;max-width:calc(924px - 15px);}
</style>
]]></style>
<style name="question.after"><![CDATA[
<div class="ketool-stage" id="ketool-stage-${this.label}" style="margin-bottom: 50px; margin-top: -30px;"></div>
<script type="text/javascript" src="${KEDomain}/core/framework.min.js"></script>
<script>
if (!ketool.qDefs) {
ketool.qDefs = {};
if (!ketool.toolLoader) {
ketool.toolLoader = new ketool.Loader({
"baseFileURL": "${KEDomain}/core/",
"scriptDeps": [
"fancybox/fancybox.library.js",
"plugins/jquery-ui.min.js",
"plugins/jquery.ui.touch-punch.min.js",
"plugins/jquery_clickfix.ui.touch-punch.min.js",
"advanced_ui/Carousel_libs.js",
"advanced_ui/Carousel.js"
],
"cssDeps": [
"framework.css",
"fancybox/fancybox.library.css",
"ionicons/ionicons.min.css",
"plugins/jquery-ui.css",
"advanced_ui/Carousel_libs.css",
"advanced_ui/Carousel.css"
],
"coreFile": "application.min.js",
"messages": null,
"platformInterface": { js: "platform_interface/platform_interface.js", "css": "platform_interface/platform_interface.css" }
});
console.log("ketool.toolLoader: ", ketool.toolLoader);
}
}
ketool.qDefs["${this.label}"] = ${jsexport()};
var isTest = "${gv.isUser() and not gv.debug.respview}" === "True";
var toolSettings = {
"toolJs": "application.min.js",
"toolName": "Cardsort",
"jsToLoad": ["custom_bucket/customBucket.js"],
"cssToLoad": ["style.css", "custom_bucket/customBucket.css"],
"baseToolPath": "${KEDomain}/tools/card_sort/",
"container": "#ketool-stage-${this.label}",
"toolCssNames": [],
"imageBaseURL": "",
"minRequired": ${len(this.rows)},
"maxAllowed": ${len(this.rows)},
"timeDataNumDecimals": 2,
"autoNext": false,
"autoNextItem": true,
"numRequiredGroups": 1,
"maxAllowedInGroups": 0,
"maxCardDrop": 1,
"showZoom": false,
"zoomPosition": "bottom-right",
"oneByOne": false,
"isRanking": false,
"isLadder": false,
"showCounter": true,
"countPrefix": "",
"countDelimiter": "/",
"countSuffix": "",
//"compOrder": ["bucketContainer", "itemContainer"],
"compOrder": ["itemContainer", "bucketContainer"],
"numCardsCarousel": 1,
"animationSpeed": 300,
"cardLayout": "grid", // grid, carousel
"carouselType": "horizontal", // horizontal, vertical
"tolerance": "pointer",
"bucketWidth": 160,
"bucketHeight": 260,
"droppedCardWidth": 150,
"droppedCardHeight": 55,
"qid": getFormName(1),
"formNames": {
"time_qid": "",
"order_qid": "",
"exclusive_qid": ""
},
"answerItemConfig": {
"width": "240px",
"height": "50px",
"numItemsPerRow": 4
},
"customBucketSettings" : {
bucket_qid : getFormName(1)+"Header",
showBucketBy: "free", // "free" - show buckets when card is dragged || "button" - add +/- button to show or hide buckets
initBucketShown: 1,
//for manual adding of new group
btnPosition : "top", //top or bottom of the buckets
addOnEmpty : false,
},
"customValidation": function(q) {
console.log("customValidation()");
return true;
},
mobileConfig: {}
};
ketool.toolLoader.registerSettings(toolSettings, function(info) {
// console.log("Questions loaded");
// console.log(JSON.stringify(info.bridge._platformInterface._questions));
// console.log("info: ", info);
info.bridge.setPageValidation(function() {
// console.log("setPageValidation");
return true;
});
info.instance.on("item_dropped", function(e) {
ketool.customPlugin.func.onItemDropped(info, toolSettings, e)
});
info.instance.on("tool_loaded", function(e) {
//console.log("tool_loaded", e);
ketool.customPlugin.func.initGroupings(info, toolSettings)
if (isTest) {
${initKEToggleData()}
}
});
});
$ (function() {
ketool.toolLoader.initLoad();
});
</script>
]]></style>
</radio>
<text
label="ketoolCardsort2Header"
translateable="0">
<title>Bucket Name</title>
<insert source="ketoolCardsort2Col"/>
<style name="question.after"><![CDATA[
<script type='text/javascript'>if (ketool.qDefs) ketool.qDefs["${this.label}"] = ${jsexport()};</script>
]]></style>
</text>
<suspend/>
General Instructions for all ketool setups
For all ketool setup, please implement the below
<exec when="init">
KEDomain = "https://au.focusvision.com/survey/selfserve/560/221003"
project_id = gv.survey.path
def initKEToggleData():
returntext = "\n var dataToggler = jQuery('<div>For testing only - click here to expand data capturing nodes to verify the data capture during test mode.</div>');\n"
returntext += "dataToggler.addClass('dataToggle');\n"
returntext += "dataToggler.css({'text-decoration': 'underline','font-size': 'small','color': 'blue','cursor': 'pointer','margin-top': '20px'});\n"
returntext += "jQuery('.ketool-stage').last().after(dataToggler);\n"
returntext += "dataToggler.click(info.bridge.toggleDataNodes());\n"
return returntext
def initkelegacyDataToggle():
if gv.isUser() and not gv.debug.respview:
output = "<script>\n"
output += "var dataToggler = jQuery('<div>Please click here to see the data nodes for this tool.</div>');\n"
output += "dataToggler.addClass('dataToggle');\n"
output += "dataToggler.css({'text-decoration': 'underline','font-size': 'small','color': 'blue','cursor': 'pointer','margin-top': '20px'});\n"
output += "dataToggler.click(kelegacyDataToggle);\n"
output += "function kelegacyDataToggle(){ if(jQuery('.survey-page').hasClass('showkelegacyData')) jQuery('.survey-page').removeClass('showkelegacyData'); else jQuery('.survey-page').addClass('showkelegacyData'); }\n"
output += "jQuery(function(){jQuery ('.survey-buttons').before(dataToggler); })\n"
output += "</script>\n"
output += "<style>.showkelegacyData .answers,.showkelegacyData .question{display: block !important;visibility: visible !important;}</style>\n"
return output
else:
return ""
</exec>
We also have few general options in all ketool setups with function “initKEToggleData” is being called, which should not be changed, these are:
- toolJs: This option contains the name of js file for respective tool
- toolName: This option contains the name of tool
- jsToLoad: This option contains the name(s) of additional js file(s) to load for respective tool
- cssToLoad: This option contains the name(s) of css file for respective tool
- baseToolPath: This option stores the path where any of the above files are stored
- container: This contains the id for calling the div where the tool is rendered
- qid: This stores the current question label to refer
These options are optional and should only be implemented if needed:
- time_qid: This option stores the question label where the time spent on each option (in case it is needed) is stored
- order_qid: This option stores the question label where the order in which an option is answered is stored
- numDecimalsTimeData: This stores the decimal places for the data stored in time spent question
- customValidation: Can be used to specify any custom validation using js
- answerItemConfig: Have the below values which can be used to determine the appearance of the question:
- width: This option stores the width occupied by the question
- numItemsPerRow: Has 3 options below based on screen sizes:
- small: Here we can specify the number if items shown in a row (i.e. horizontally) on small screens (such as few tablets and all phones)
- medium: Here we can specify the number if items shown in a row (i.e. horizontally) on medium screens (such as few tablets and some laptops/desktops with small screen size/resolution)
- large: Here we can specify the number if items shown in a row (i.e. horizontally) on large screens (such as laptops/desktops with large screen size/resolution)
- imageBaseURL: This stores the path for all the images used in the setup (so images can just be called by their name if this is specified
For any follow-up question (including “_time”, “_order” questions) should include the below code:
<exec when="init">
<style name="question.after"><![CDATA[
<script type='text/javascript'>if (ketool.qDefs) ketool.qDefs["${this.label}"] = ${jsexport()};</script>
]]></style>
Card Sort based Setups (#11, #12, #13, #19 & #20)
We have multiple setups i.e. Bucket Sort Single, Bucket Sort Multi Bucket Sort (with images), Bucket Sort Custom #1 (with few predefined scales) and Bucket Sort Custom #1 (with no predefined scales) based on base card sort type questions, so for these we will have below settings and its uses:
| Tool Settings | Use | Value Type / Syntax | Default Value / Possible Values | |||
|---|---|---|---|---|---|---|
| minRequired | Minimum number of cards that the user must drop before the next button is shown. A value of 0 = no cards required to be dropped. | Number > 0 | 2 | |||
| maxAllowed | Maximum number of cards that the user can drop. Setting this to 0 means any number of cards can be dropped. | Number > 0 | 0 | |||
| maxCardDrop | The maximum number of times a card can be dropped. | Number > 0 | 1 | |||
| showZoom | Zoom-in buttons appear if true. | boolean | false | |||
| bucketHeight | Bucket option height (px). | String (for width in px) | 260 | |||
| bucketWidth | Bucket option width (px). | String (for width in px) | 160 | |||
| droppedCardWidth | Width of card when inside bucket. | String (for width in px, %, em, rem) | 140 | |||
| droppedCardHeight | Height of card when inside bucket. | String (for width in px, %, em, rem) | 55 | |||
| answerItemConfig | width | Answer option width | String (for width in px, %, em, rem) | 300px | ||
| height | Answer option height (px). | String (for width in px) | 100px | |||
| numItemsPerRow | number of items per row to be displayed in a grid system | custom format | {"small": 1, "medium": 1, "large": 1}
Here we can specify number in the above (i.e. replace 1 by specific value) |
|||
| formNames | time_qid | Question for holding the timers. Make sure you have the same option code list/order as in the grid. | string |
|
||
| order_qid | Question for holding the order data. Make sure you have the same option code list/order as in the grid. | string |
|
|||
| exclusive_qid | Single response question for holding the overall exclusive data. The question itself can have multiple rows - for multiple overall exclusive options | string |
|
|||
| cardLayout | Layout of how cards are shown. When isMobile is set to true, the cardLayout will always be 'carousel'. | Fixed string | Default value: grid
Possible values: ["grid","carousel"] |
|||
| isRanking | If true, only 1 item can dropped on every option. | Boolean | false | |||
| timeDataNumDecimals | Number of decimal places that the time data should be stored. | number > 0 | 2 | |||
| autoNext | Auto next when validation is met. | Boolean | false | |||
| autoNextItem | Whether to automatically move to the next item after answering. | Boolean | True | |||
| numRequiredGroups | The minimum number of dropzones that must have cards dropped in it before the user can proceed forward. Minimum 1. | number > 0 | 0 | |||
| maxAllowedInGroups | The maximum number of cards that can be added to groups. Setting this to 0 means any number of cards can be dropped. 'min' property in answer scale options overrides this. | number > 0 | 0 | |||
| zoomButtonImage | Image URL to use for the 'zoom' button that appears on answer cards. | Boolean | Path already specified; no change needed here | |||
| zoomPosition | Position of the zoom button. | Fixed string | Default value: bottom-right
Possible values: ["bottom-right","top-right","bottom-left","top-left"] |
|||
| oneByOne | If true, all draggable items are stacked and one is shown at a time. False and all items are shown in a carousel. This overrides 'numCardsCarousel' if set to true (effectively sets this to 1). | Boolean | false | |||
| isLadder | If true, vertical ranking is shown. Only works if 'isRanking' set to true. | boolean | false | |||
| showCounter | (For 'cardLayout' : 'carousel') Set to true to show progress indicator. | boolean | true | |||
| countPrefix | Text that appears at the start of the counter text. | string |
|
|||
| countDelimiter | Text that appears between the numbers in the counter text. | string | / | |||
| countSuffix | Text that appears at the end of the counter text. | String |
|
|||
| numCardsCarousel | (For 'cardLayout' : 'carousel')
Number of cards shown at once in the carousel. If 'oneByOne', 'isMobile', 'autoNextItem' is set to true, it effectively ignores any value here and sets a value of 1 for this param. If this param is not specified then the tool will attempt to show as many cards as possible based off the card size. |
number > 0 | 1 | |||
| animationSpeed | (For 'cardLayout' : 'carousel') Transition speed between cards in carousel. | number > 0 | 300 | |||
| tolerance | Which mode to use for testing whether a draggable is hovering over a droppable. Possible values: pointer, fit, intersect. | Fixed string | Default value: pointer
Possible values: ["pointer","fit","intersect"] |
|||
| compOrder | The position of any of the core parts of the tool from top to bottom.(e.g. \"itemContainer\",\"bucketContainer\")" | array | Default value: ["itemContainer","bucketContainer"]
Possible values: ["itemContainer","bucketContainer"] |
|||
| carouselType | Determines the layout of carousel | Fixed string | Default value: horizontal
Possible values: ["horizontal","vertical"] |
|||
| isMobile | Determines whether card sort should be displayed in mobile mode. | Boolean | false | |||
| mobileConfig | showCarouselNav | Whether to show the carousel navigation buttons. | boolean | true | ||
| showErrorMessage | Whether to display the error messages. | boolean | true | |||
| errorMessages | isInBucketError | Message to display if item is already in the bucket. | String | Item already in bucket. | ||
| maxAllowedError | Message to display if maximum # of items that can be dropped is reached. | String | You've reached the max number of items that can be dropped. | |||
| maxAllowedInGroupsError | Message to display if maximum # of items in bucket is reached. | String | You've reached the max number of items allowed in this bucket. | |||
| otherMinChar | Minimum character required for the other specify box. | number > 0 | 0 | |||
| Row Options | Use | Value Type / Syntax | Possible Values |
|---|---|---|---|
| imageURL | URL for image to be displayed in the answer option cards. | string | Image file URL |
| largeImageURL | Alternative URL for image to be displayed in the zoom window if different from the image in the card. | string | Image file URL |
| width | Custom width to apply to this answer option. | string | Width in px, rem, em or % |
| height | Custom height to apply to this answer option. | string | Width in px, rem, em or % |
| other | Whether this card is an 'other, please specify' | boolean |
|
| Scale/column Options | Use | Value Type / Syntax | Possible Values |
|---|---|---|---|
| width | Custom width to apply to this scale option. | string | Width in px, rem, em or % |
| height | Custom height to apply to this scale option. | string | Width in px, rem, em or % |
| min | The minimum number of items this group must have dropped in it before the user can proceed past this question | number > 0 |
|
| max | The maximum number of items this group can contain | number > 0 |
|
