Max-Diff Click Style (#32)
mobile-phone

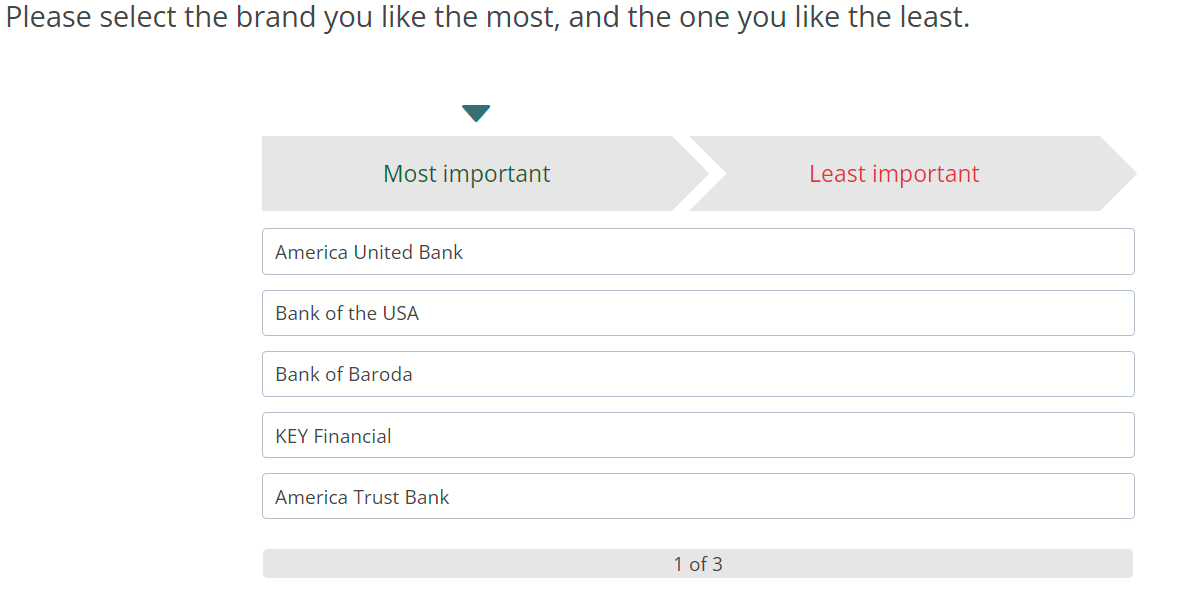

Max-Diff Click

Below is the question which should be copied and question text, question label, row text and column text should be updated accordingly.

 <radio
   label="maxDiffMobile"
   fir="off"
   randomize="0"
   surveyDisplay="desktop">
    <title>Please select the brand you like the most, and the one you like the least.</title>
    <row label="r1">Most important</row>
    <row label="r2">Least important</row>
    <col label="c1">America United Bank</col>
    <col label="c2">Bank of the USA</col>
    <col label="c3">Bank of Baroda</col>
    <col label="c4">KEY Financial</col>
    <col label="c5">America Trust Bank</col>
    <style name="page.head"><![CDATA[
<style>.answers{display:none;}</style>
]]></style>
    <style name="question.after"><![CDATA[
<style>.answers{display: none} .progress-container {text-align: center;}</style>

          <script type="text/javascript" src="${KEDomain}/core/legacytool/application_decipher_v1.1.js"></script>

              <script type="text/javascript">
              var coffeebeans;
              (function (coffeebeans) {
                if (!coffeebeans.qDefs)
                  coffeebeans.qDefs = {};
                  coffeebeans.qDefs["${this.label}"] = ${jsexport()};
                $ (document).ready(function(){
                  parseJsexportData();
                });
              })(coffeebeans || (coffeebeans = {}));

              </script>

          <link rel="stylesheet" href="${KEDomain}/tools/click_maxDiff/maxdiff.min.css">
          <link rel="stylesheet" href="${KEDomain}/core/ionicons/ionicons.min.css">

          <script src="${KEDomain}/tools/click_maxDiff/maxdiff.min.js"></script>

          <div class="maxdiff-container"><img class="img-responsive loading-container" src="${KEDomain}/core/images/curve.gif"/><div class="inner-container"><div class="scale-container"></div><div class="options-container"></div><div class="progress-container"></div></div></div>

          <script>
          $ (function() {
              $ ('.toolContainer').MaxDiff({


                  sTheForm: getFormName(1), // question element id
                  sProgressCurrentIterationText: '1', // current iteration text
                  sProgressTotalIterationsText: '3', // update loopname if necessary
                  sProgressSplitText: ' of ', // progress count splitter
                  iSetMinHeight: null, // if set - will add min height to all item containers
                  sForwardbutton: '#btn_continue', // forward button selector - used to toggle next button
                  bReverseScale: false, // if true - left scale will be negative, right scale will be positive
                  bShowProgress: true, // show iteration progress
                  bAutoSubmit: false // if true - will auto-submit once both positive and negative are answered
              });


          });
          </script>
${initkelegacyDataToggle()}
]]></style>
  </radio>
General Instructions for all ketool setups

For all ketool setup, please implement the below block at the start of the survey XML

<exec when="init">
KEDomain = "https://au.focusvision.com/survey/selfserve/560/221003"
project_id = gv.survey.path

def initKEToggleData():
  returntext = "\n var dataToggler = jQuery('<div>For testing only - click here to expand data capturing nodes to verify the data capture during test mode.</div>');\n"
  returntext += "dataToggler.addClass('dataToggle');\n"
  returntext += "dataToggler.css({'text-decoration': 'underline','font-size': 'small','color': 'blue','cursor': 'pointer','margin-top': '20px'});\n"
  returntext += "jQuery('.ketool-stage').last().after(dataToggler);\n"
  returntext += "dataToggler.click(info.bridge.toggleDataNodes());\n"
  return returntext

def initkelegacyDataToggle():
  if gv.isUser() and not gv.debug.respview:
    output = "<script>\n"
    output += "var dataToggler = jQuery('<div>Please click here to see the data nodes for this tool.</div>');\n"
    output += "dataToggler.addClass('dataToggle');\n"
    output += "dataToggler.css({'text-decoration': 'underline','font-size': 'small','color': 'blue','cursor': 'pointer','margin-top': '20px'});\n"
    output += "dataToggler.click(kelegacyDataToggle);\n"
    output += "function kelegacyDataToggle(){ if(jQuery('.survey-page').hasClass('showkelegacyData')) jQuery('.survey-page').removeClass('showkelegacyData'); else jQuery('.survey-page').addClass('showkelegacyData');  }\n"
    output += "jQuery(function(){jQuery ('.survey-buttons').before(dataToggler); })\n"
    output += "</script>\n"
    output += "<style>.showkelegacyData .answers,.showkelegacyData .question{display: block !important;visibility: visible !important;}</style>\n"
    return output
  else:
    return ""
</exec>
Max-Diff click style settings (#32)

Below are the tool settings for Max-Diff click style setup:

Tool Settings Use Value Type / Syntax Default Value / Possible Values
sTheForm Question element ID  string getFormName(1)
bReverseScale If set to true - reverses the color style for the scales boolean false
iSetMinHeight If set with an integer - will add minimum height with the value provided for the item containers integer
bShowProgress If set to false - hides the iteration progress indicator boolean true
bAutoSubmit If set to true - the page is auto submitted after the 2 scales are answered boolean false
iLoadDelay Delay for showing the tool after the files are loaded and html is generated integer 100
sForwardbutton The query selector for the next button. Used for toggling the next button String (for continue button ID) #forwardbutton
sProgressCurrentIterationText Pipe in the current iteration value string Pipe in current loop row sequence here
sProgressSplitText Text splitting the current and the total number of iterations for the progress string “ out of “
sProgressTotalIterationsText Pipe in the total iteration count string Pipe in total number of looprow
